KDS Stainless Steel Syringes General Information
Stainless steel syringes are intended to be used with high pressure applications or for customers who need syringes with good resistance to most aggressive liquids. All tips are interchangeable with all syringes in the series.
2.5ml and 8ml Stainless Steel Syringes can be used with pressures up to 7500psi and 1500psi respectively. The 8ml syringe is #316 stainless steel and the 2.5ml syringe is #400C stainless steel.
The 20 through 200ml stainless steel syringes are all #316 stainless steel and are leak free up to 750 psi.

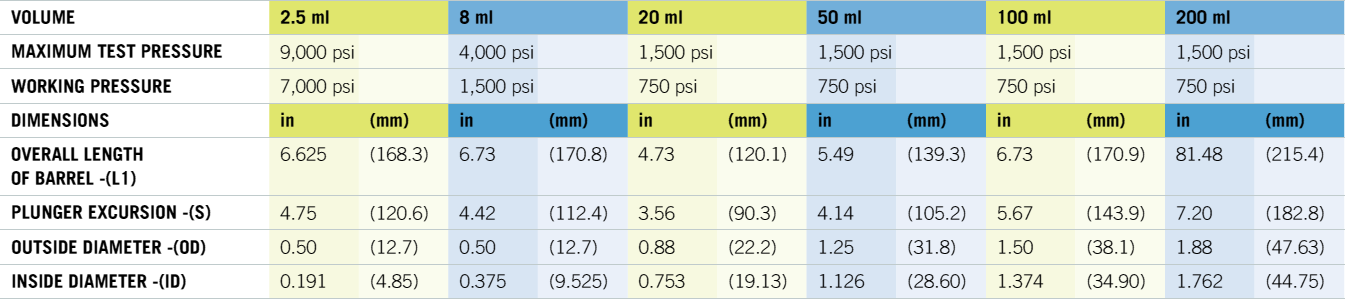

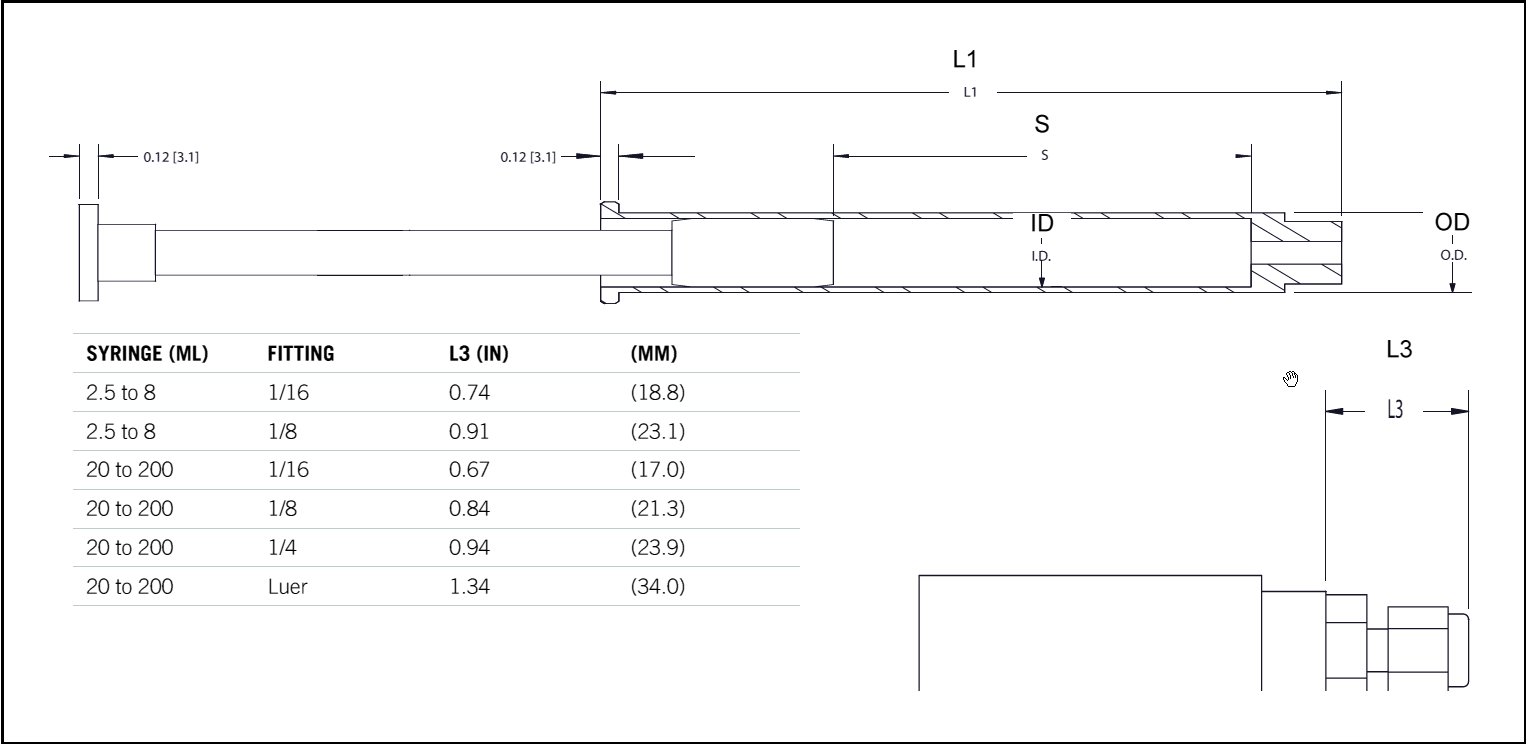

Specifications:
| Volume ml | Diameter (mm) | Surface Area (in2) |
| 2.5 | 4.851 | 0.027937 |
| 8 | 9.525 | 0.110447 |
| 20 | 19.13 | 0.445505 |
| 50 | 28.6 | 0.995760 |
| 100 | 34.9 | 1.482768 |
| 200 | 44.75 | 2.438382 |
