KDS 100 Legay pump clamping plate has come off

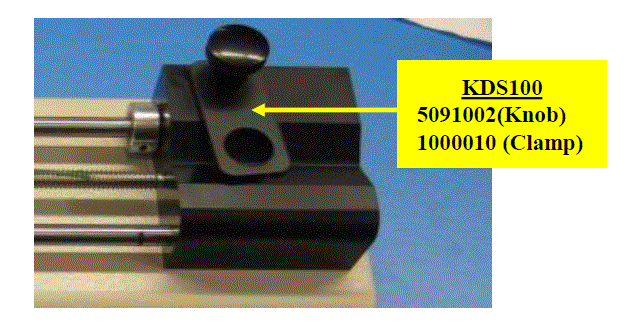

If the clampinging plate  - the little bar that holds the syringe down on the mounting block - has come off, the end user can fix this themselves. It may at first appear that a coupler / mounting rod is missing

Procedure:

It is not difficult to retrieve the syringe post that has slipped inside a KDS 100

   nb: You need to still have the clamping bar and the knob

The only additional equipment that you will require is a pair of needle nose pliers.

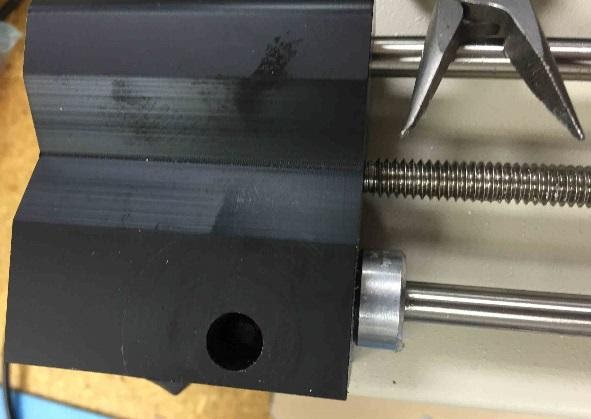

First look in and verify that you can see the threaded tip of the syringe post

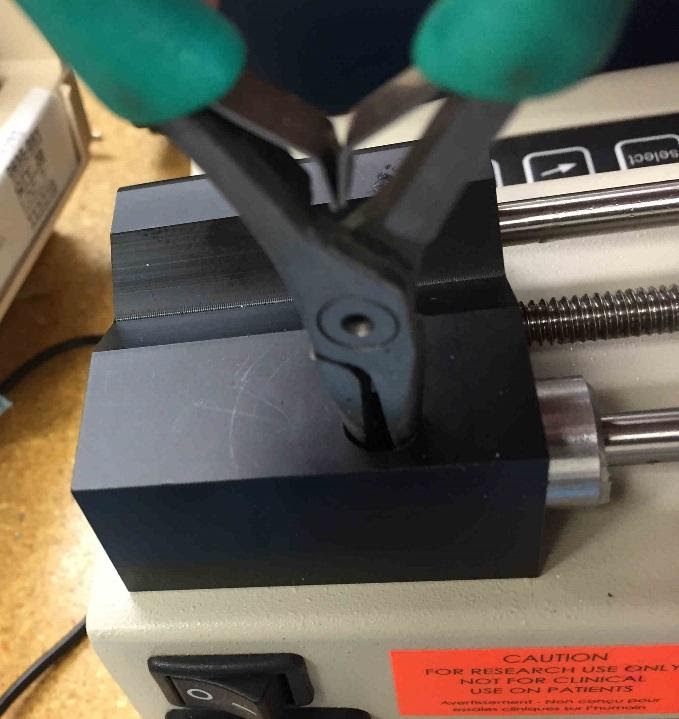

If you can see something inside the hole, reach in with the pliers

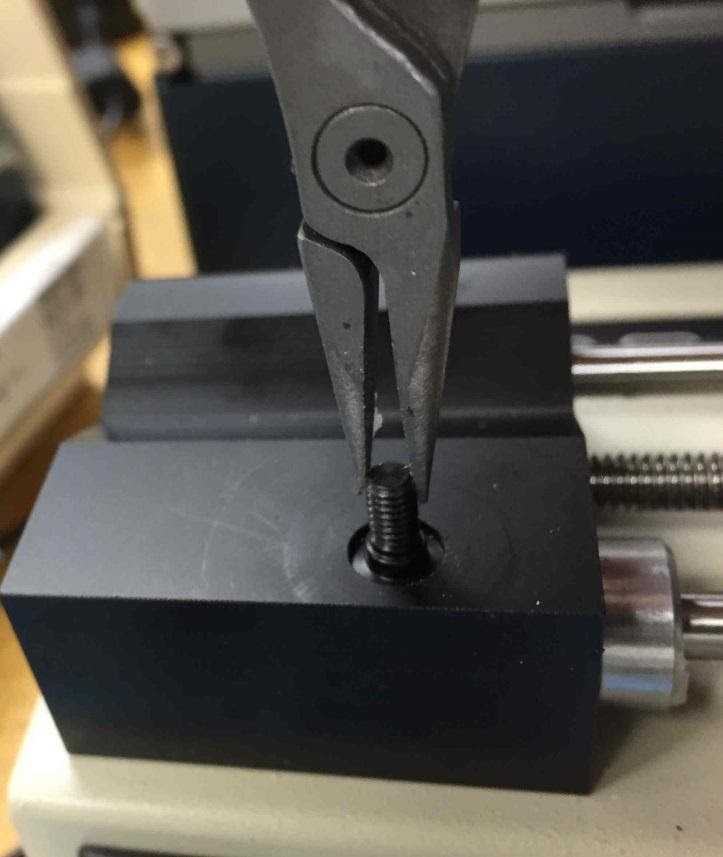

And pull it up

.

Then just grab the syringe post with your fingers and screw on the clamping bar with the knob
